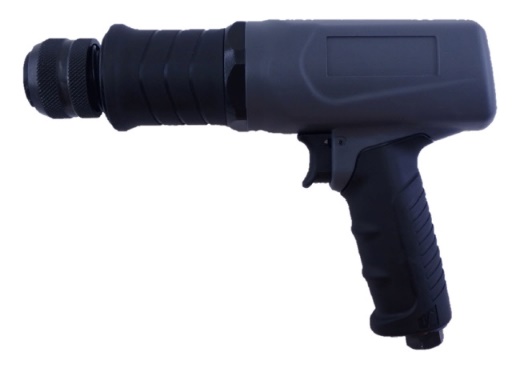

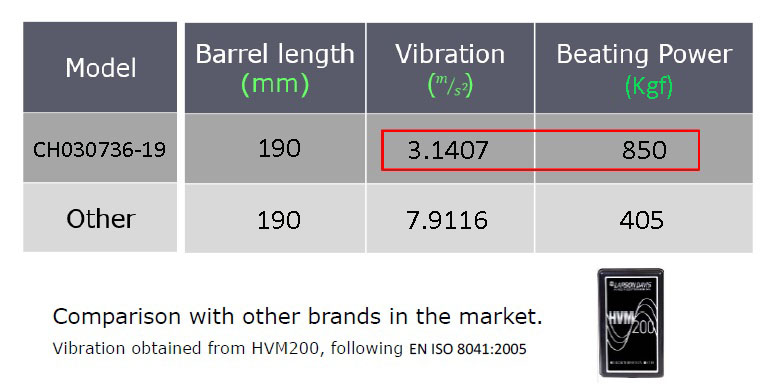

Item No.: CH030736-19 Air Hammer (190mmL) Feature: * This hammer is composed of vibration damping system and active air spring which significant decrease in hammer vibration. Results in high beating power and low hand fatigue * Piston forward, maximum impact * Piston backward, minimum vibration     Specification: Vibration 3.1407 m/s2 Beating power 850 Kgf Shank opening 0.41 In. BPM 3500 Air Con. 3.4 CFM Bore Dia. 0.75”(19mm) Stroke length 2.3”(58mm) Weight 4.9Lbs (2.2kg) Length 9.5”(242mm)
