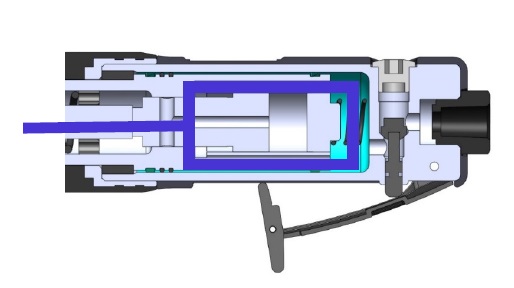

Item No.:CH030737-12 Air Suspension Vibration Damping Needle Scaler Feature:     * With Damping System provide more efficient hammer beating while yielding low vibration.     * The only air spring used in needle scaler. * With P.A.T.  Specification: Item No.   CH030737-12 (12 Needles) CH030737-19 (19 Needles) Vibration m/s2 4800 4300 Needle Dia./ Length 3mm / 18mm 3mm / 18mm Bore Dia. In.(mm) 0.79”(20) 0.91”(23) Stroke Length In.(mm) 0.79”(20) 0.79”(20) Air Con. SCFM 3.5 3.5 Weight Lbs(kg) 2.4(1.1) 3.5(1.6) Length In.(mm) 9.4(238) 11(280)
