Item No.: CH041305-PH

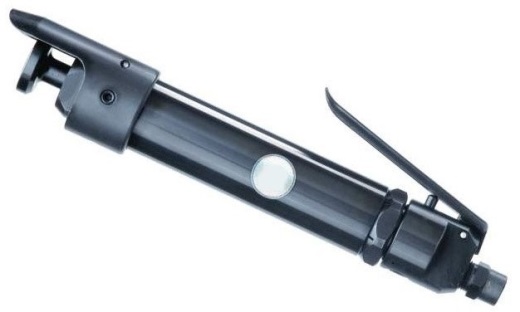

Air Pittsburgh Lock Seam Hammer

Feature:

* Designed to close the pittsburgh lock seam.

* Efficient tool for sheet metal work.

* Used to fold over or seam metal to 16 gauges.

* Reduce the working time up to 80%.

* Heat treated parts for longer life.

* Lighter and neater, more uniform than seamed by hand.

Specification:

* Air inlet: 1/4” PT/NPT

* Hose inlet: 3/8” inch.

* Blow per minute: 4600 BPM

* Air consumption: 6CFM (170LPM)

* Piston diameter: dia. 25.4 x 44mm

* Piston stroke:38.5mm (1.5 inch)

* Chisel shank: 12.7mm (0.5 inch) square

* Overall length: 301mm (11.9 inch)

* Weight: 2.5kg (5.3lb)

* Air pressure: ≦90 PSI (6.2bar)
