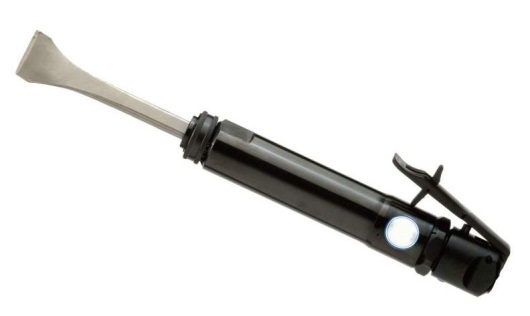

Heavy Duty Chisel Scaler



Item No.: CH041319-FL

Heavy Duty Chisel Scaler

Description:

* Superior design with internal spring components provides greater durability.

* Heat treated piston and cylinder ensure excellent durability and long life.

* Removing coatings, corrosion and other accumulated materials.

* Ideal for surface preparation, de-rusting and de-painting.

* Cleaning and stress relieving weld seams and joints.

* Easy convert from chisel scaler to needle scaler.

* Sturdy and simple design for wide application.

Specification:

* Air inlet: 1/4" PT/NPT

* Hose inlet: 3/8” inch.

* Blows per minute: 4000BPM

* Air consumption: 6.4 CFM (181LPM)

* Piston diameter: dia. 23.8 x 59 mm

* Piston stroke: 36mm (1.4 inch)

* Chisel shank: 12.7mm (0.5 inch) square

* Overall length: 364mm (14.3 inch)

* Net weight: 1.9kg (4.2lb)

* Air pressure: 90 PSI (6.2bar)
