Light Duty Chisel Scaler



Item No.: CH041323-F

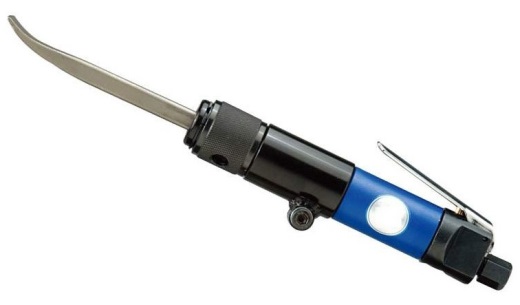

Light Duty Chisel Scaler

Description:

* Superior design with internal spring components provides greater durability.

* Heat treated piston and cylinder ensure excellent durability and long life.

* Removing coatings, corrosion and other accumulated materials.

* Ideal for surface preparation, de-rusting and de-painting.

* Cleaning and stress relieving weld seams and joints.

* Easy convert from chisel scaler to needle scaler.

* Sturdy and simple design for wide application.

Specification:

* Air inlet: 1/4" PT/NPT

* Hose inlet: 3/8” inch.

* Blows per minute: 3800BPM

* Air consumption: 2.5 CFM (71LPM)

* Piston diameter: dia. 18 x 56.8mm

* Piston stroke: 30mm (1.2 inch)

* Chisel shank: 12.7mm (0.5 inch) square

* Overall length: 324mm (12.8 inch)

* Net weight: 1.6kg (3.5lb)

* Air pressure: 90 PSI (6.2bar)

* Sound pressure level: 94dBA

* Sound power level: 105dBA

* Vibration level:12.01 m/sec2
