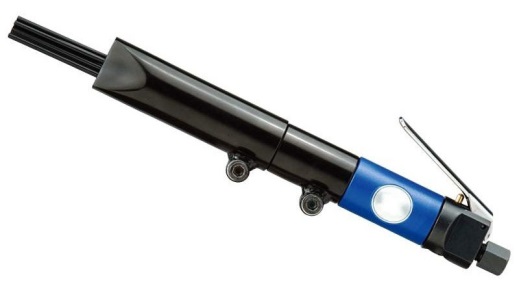

Light Duty Needle Scaler



Item No.: CH041323-NS

Light Duty Needle Scaler

Description:

* Superior design with internal spring components provides greater durability.

* Heat treated piston and cylinder ensure excellent durability and long life.

* Removing coatings, corrosion and other accumulated materials.

* Ideal for surface preparation, de-rusting and de-painting.

* Cleaning and stress relieving weld seams and joints.

* Easy convert from needle scaler to chisel scaler.

* Sturdy and simple design for wide application.

* Needle scaler for Industrial applications.

* Adjustable front tube extends needle life.

* General purpose needle scaler.

Specification:

* Air inlet: 1/4" PT/NPT

* Hose inlet: 3/8” inch.

* Blows per minute: 4200BPM

* Air consumption: 2CFM (57LPM)

* Piston diameter: dia. 18 x 56.8 mm

* Piston stroke: 30mm (1.2 inch)

* Overall length: 355mm (14 inch)

* Needle diameter: 3 x 180mm

* Needle quantity: 12 pcs

* Net weight: 1.6kg (3.5lb)

* Air pressure: 90 PSI (6.2bar)

* Sound pressure level: 95dBA

* Sound power level: 106dBA

* Vibration level: 13.81 m/sec2
