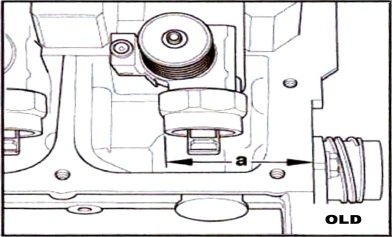

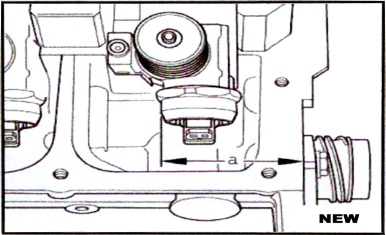

Pump Injector Adjustor Description: * Adjustment gauge for testing the installation position or to adjust the pump/nozzle unit during assembly. The adjusting device (see picture) allows the use of the adjustment gauge on pump/nozzle units with new and /or old solenoid valve nuts. The gauge sizes are the maximum settings and can be changed accordingly by using the feeler gauge. * Adjustment gauge for pump/nozzle unit size 1 , 4 cylinder * Application Engines: Audi and VW pump/nozzle engines * Attention: The two allen screws of the adjustment unit are not be unfastened. * Picture solenoid valve nut: * Other tools for the pump/nozzle engine: -XZN nut for the pump/nozzle unit -Puller for the pump/nozzle unit * Dimensions a 4. cylinder:
|
