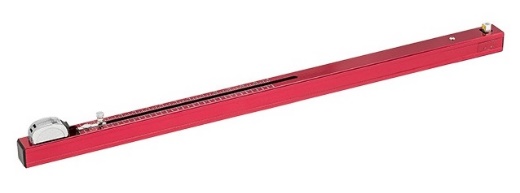

Chassis Height Measurement Tool (320mm)

Description:

* To measure chassis height directly, accurate to 1/16”. (Car on the ground)

* To measure from top of pads at ground level, to frame directly.(Car on scale pads)

* Measures chassis height dynamically, as you work on the car.

* Magnet holds tape to frame.

* Indicator shows height when the car moves up and down.

* Use 4 sets to quickly see height at all 4 corners. Don’t need to bend over at all.

Specification:

* 36” for straight rail cars on right side

* Measures height from 2” to 15”

* Works in 3 different ways – with scale pads or not

* Metric scale available from 50mm to 350mm
