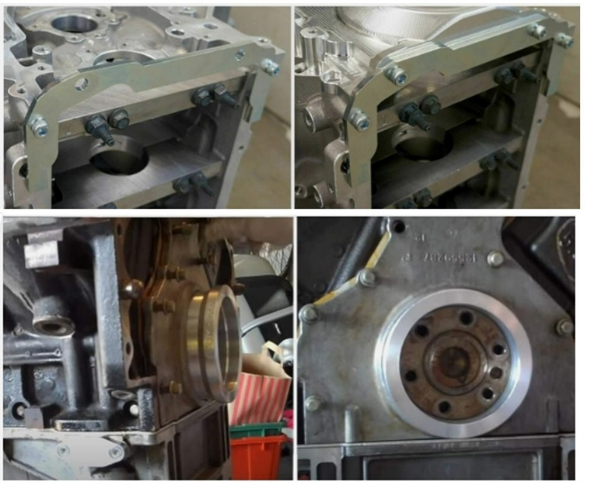

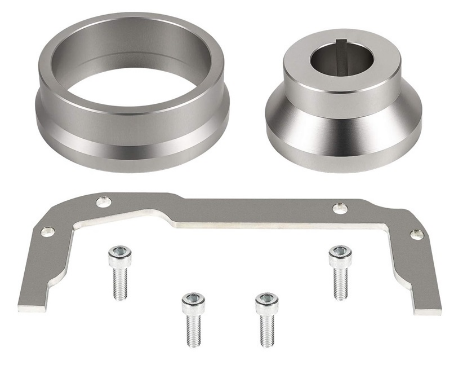

Front Rear Cover Oil Pan Alignment Tool Description: * Helps align the front and rear engine covers for proper seal function and longevity. * It is critical that the seals be aligned perfectly concentric to the front diameter of the balancer hub sealing surface. * Cover Alignment Tool mimics the balancer to center the cover on the front seal OR locates on the ID of the seal bore in the cover without the seal installed. * While the Oil Pan Alignment Tool mimics the oil pan thus providing critical alignment of the oil pan and front cover. Application: * Used to install the front cover for GM LS series engine - 4.8 5.3 5.7 6.0 LS1 LS2 LS3 LS4 LS6 LS7 L99 LS4 LS9 LSA LQ4 LQ9 L76 L92
|
