CH091169

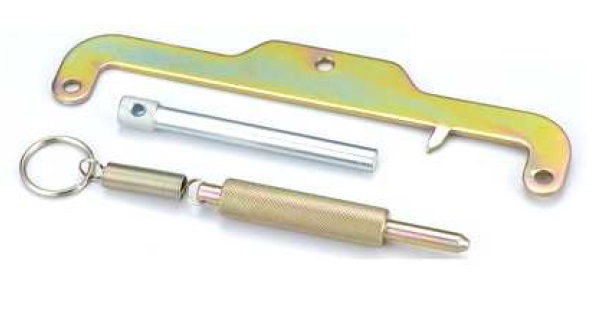

Diesel Engine Setting/ Locking Kit

Description:

* Anodized finish for corrosion

* Instructions for use are printed inside this card.

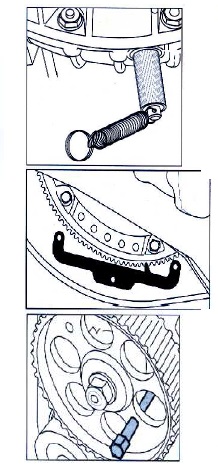

。 For vehicles without this type of sump pan, use the flywheel TDC setting tool. Secure the tool to the cell housing with the marker point bent in towards the flywheel ting gear. Align the TDC mark on the flywheel with pointer.

。

On vehicles from 1998on,the injection the injection pump locking pin is required as part of the procedure. With the TDC set up, pass the locking pin through the hole in the timing pump gear and locate it.
