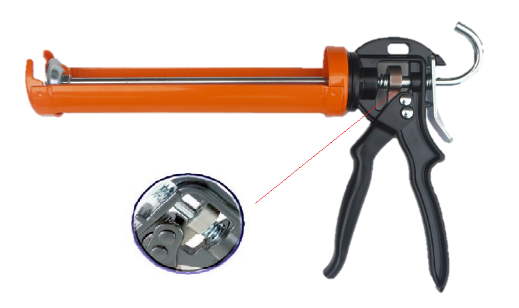

Rotary Caulking Gun --New Design!

9.0mm(T) powerful gripping plate
for greater durability.



Item No.:CH120612-IH

Rotary Caulking Gun --New Design!

Description:

* CH120612-IH, size: 9” (300mL)

* CH120612-IHL, size: 10-1/2”(400mL)

* Slotted front for easy loading

* Curved type hang hook

* 2.3mm(T) of the iron & power coating.

* 8mm(Dia.) medium carbon steel w/ harden of rod.

* 18:1 thrust ratio aluminum trigger w/power coating.

* Heavy duty steel handle w/power coating.

* Thumb pressure plug-release: 4.5mm

* Two optional connector between handle and skeleton base: plastic and hexagonal bolt, as below:

Plastic Hexagonal bolt
