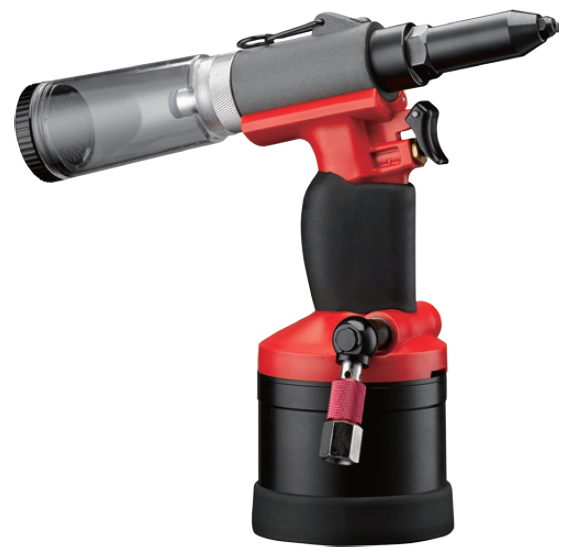

Air Hydraulic Riveter(Vacuum)

¡@

¡@

Item No.: CH121118-R

Air Hydraulic Riveter(Vacuum)



Feature:

* With Suction control switch

* Long Stroke (15mm)

* Set 3/16¡¨ (4.8mm) and 3/32¡¨(2.4mm) structural Monobolt rivets, ¡§T¡¨ rivets and standard rivets-in all materials.

* Soft set shockless tools

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Heavy duty construction for rugged applications

* Nail back twice as fast, the low pressure operating



Specification:
* Riveting capacity: 3/16¡¨, 5/32¡¨, 1/8¡¨,3/32¡¨ (4.8, 4.0, 3.2, 2.4 mm)
* Stroke: 15 mm (0.59¡¨)
* Working Air Pressure: 75 ~ 95 PSI (5.2 ~ 6.7 kg/cm2
* Traction Power: 2100 lbs (953.4kg)
* Weight: 1.45kg
* Height: 250 mm
* Length of Placing Head: 290 mm
* Base Diameter: 96.5 mm



* Other available type:

- CH121118-RI, which suction can¡¦t be tuned. To avoid artificial nails improper operation.

¡@

¡@

¡@

¡@

¡@
