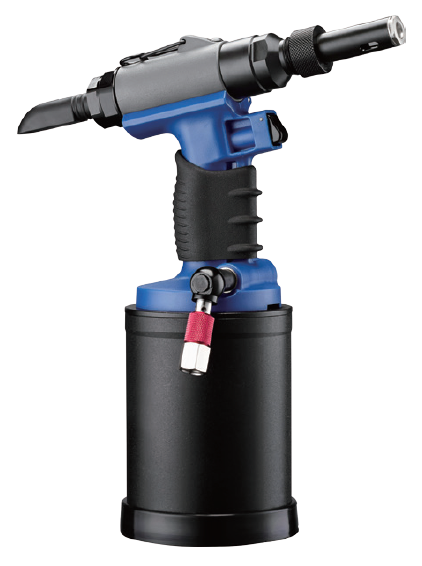

Air Hydraulic Lock Bolt Tool

¡@

¡@

Item No.: CH121120-HKR

Air Hydraulic Lock Bolt Tool



Feature:

* This tool is high performance, ergonomic tool designed for use with diameter two-piece Huck bolts.

* Made both high speed production & repair applications.

* Lightweight, reliable & easy to use, these tools deliver a level of performance never before possible in a low cost pneumatic tool.



Specification:

* Sets: 3/16¡¨ & 1/4¡¨ magna-lok, manga-bulb, auto-bulb, magna-grip & C6L

* Fluid: DEXTRON III or equivalent

* Req. air pressure: 85-95psi

* Weight: 1.74kg(3.83lbs)

* Working stroke: 24mm (0.944¡¨)

* Capacity: 4480lbs (2033kg)

¡@

¡@

¡@

¡@

¡@

¡@
