Item No.: CH121120-LR

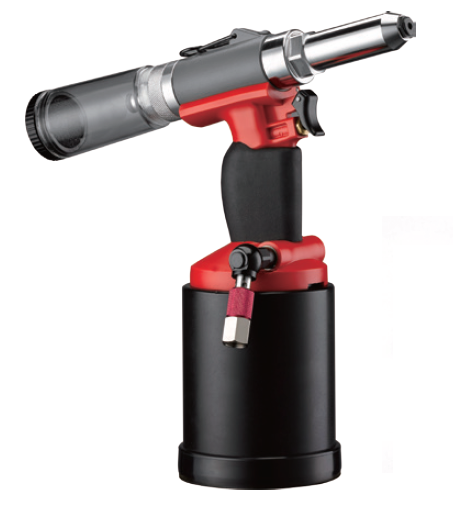

Air Hydraulic Riveter(Vacuum)



Feature:

* With Suction control switch

* Long Stroke (26mm)

* Set 1/4¡¨ (6.4mm) and 3/16¡¨(4.8mm) structural Monobolt rivets, ¡§T¡¨ rivets and standard rivets-in all materials.

* Soft set shockless tools

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Heavy duty construction for rugged applications

* Nail back twice as fast, the low pressure operating



Specification:
* Riveting capacity: 1/4¡¨, 7/32¡¨,3/16 ¡§ (6.4, 5.6, 4.8 mm)
* Stroke: 22.5 mm (0.88¡¨)
* Working Air Pressure: 75 ~ 95 PSI (5.2 ~ 6.7 kg/cm2
* Traction Power: 3100 lbs (1407kg)
* Weight: 1.88kg
* Height: 310 mm
* Length of Placing Head: 305 mm
* Base Diameter: 109 mm



* Other available type:

- CH121120-LRI, which suction can¡¦t be tuned. To avoid artificial nails improper operation.

¡@

¡@

¡@

¡@

¡@
