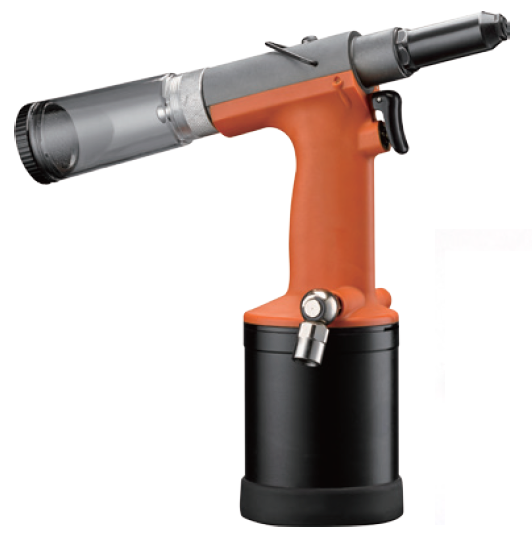

Air Hydraulic Riveter(Vacuum)

¡@

¡@

Item No.: CH1211357

Air Hydraulic Riveter(Vacuum)



Feature:

* Patented design switch 2 stages function:

-first stage: suck the rivets

-second stage: pull in

* Long Stroke (24mm)

* Set 3/16¡¨ (4.8mm) and 3/32¡¨(2.4mm) Monobolt rivets, ¡§T¡¨ rivets and standard rivets-in all materials.

* Soft set shockless tools

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Heavy duty construction for rugged applications

* Nail back twice as fast, the low pressure operating



Specification:
* Riveting capacity: 3/16¡¨ ,5/32¡¨,1/8¡¨, 3/32¡¨ (4.8,4.0, 3.2, 2.4 mm)
* Stroke: 24 mm (0.94¡¨)
* Working Air Pressure: 85 ~ 95 PSI (6 ~ 6.7 kg/cm2
* Traction Power: 2100 lbs (953.4kg)
* Weight: 1.56kg
* Height: 295 mm
* Length of Placing Head: 320 mm
* Base Diameter: 90 mm

¡@

¡@

¡@

¡@

¡@
