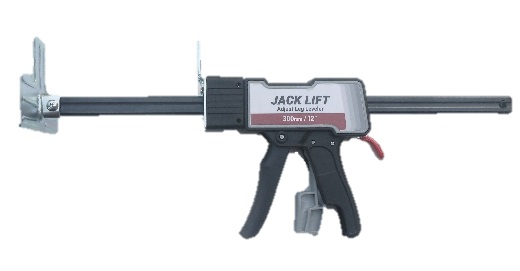

Handheld Jack Lift





Item No.: CH121297

Handheld Jack Lift

Feature:

*Labor-Saving Arm.

*Specially equipped with a Micro-Adjustable Mechanism for slow downward function.

*The max. loading capacity of this tool is 120kgs(260LBS).

Specification:

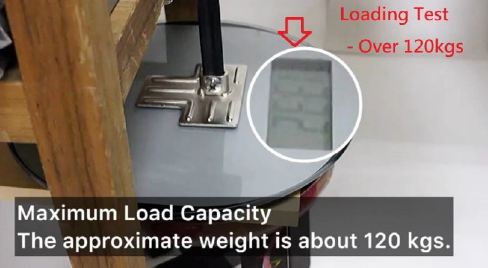

* Max. loading capacity: 120kgs(260LBS)

* Operation range: 7-305mm

* Standard base 100 x 90 x 2.5 mm

* Rise support plate: 45 x 45 x 2.5 mm

* Material:

 -Handle: Nylon

 -Steel plate: high carbon steel

Applications:

* Furniture, Washing Machines, Doors, Home Improvement, woodworking tool and other devices.

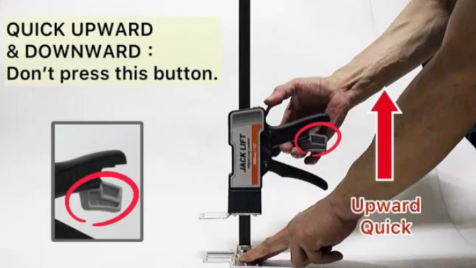

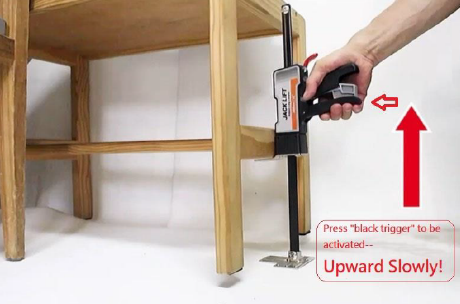

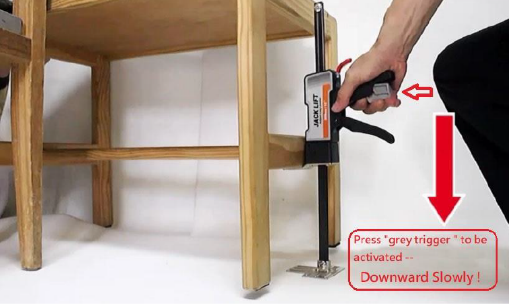

Operation:

Handheld Jack Lift Handheld Jack Lift

Handheld Jack Lift Handheld Jack Lift
