Item No.: CH1213220

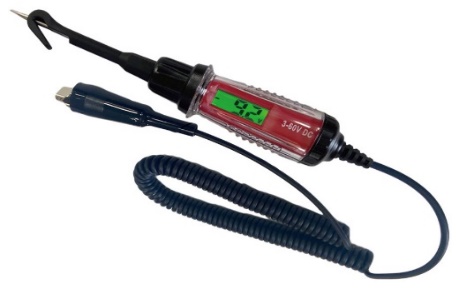

Digital Display Auto Circuit Tester

Descriptions:

* The tester is not only for traditional vehicles, it is also suitable for HEV (Hybrid Electric Vehicles) and PHEV (Plug-in Hybrid Electric Vehicles).

* This kind of vehicle will have two batteries and two voltage supply system, one is supplied by 12 ~ 24V battery, and another one is supplied by 42 ~ 48V battery.

* In general, 42 ~ 48V will eventually converted to voltage higher than 200V for the driver motor.

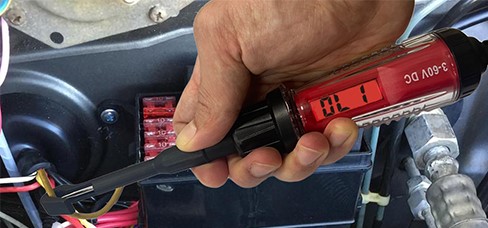

* With the over voltage protection indication, user is able to recognize which battery line they are measuring.

* In addition, some vehicle has DC/AC voltage converter to convert 12V battery to 110 ~ 240VAC. With this tester, user is able to make sure they are wiring with the correct DC wire.

Features:

* Check on 6, 12, 24 and 48V systems.

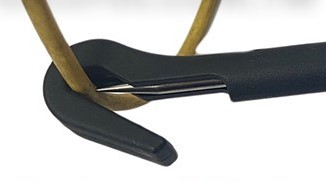

* Wire Hooker and Piercing

* DC Voltage Measurement

* LCD with Dual Color Polarity indication

* AC / DC identification

* Data Hold

* Low Power Consumption

* Computer Safe (Testing Current < 10mA)

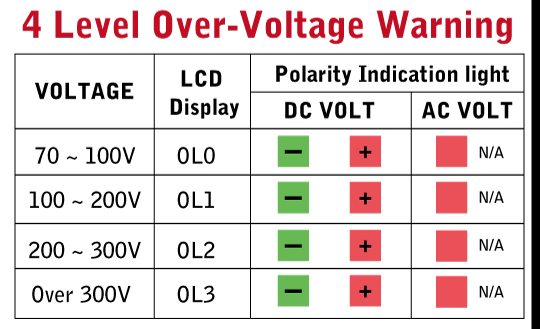

* Over-Voltage Protection and Warning for 4 different voltage level
