ITEM NO.: CH130818
　

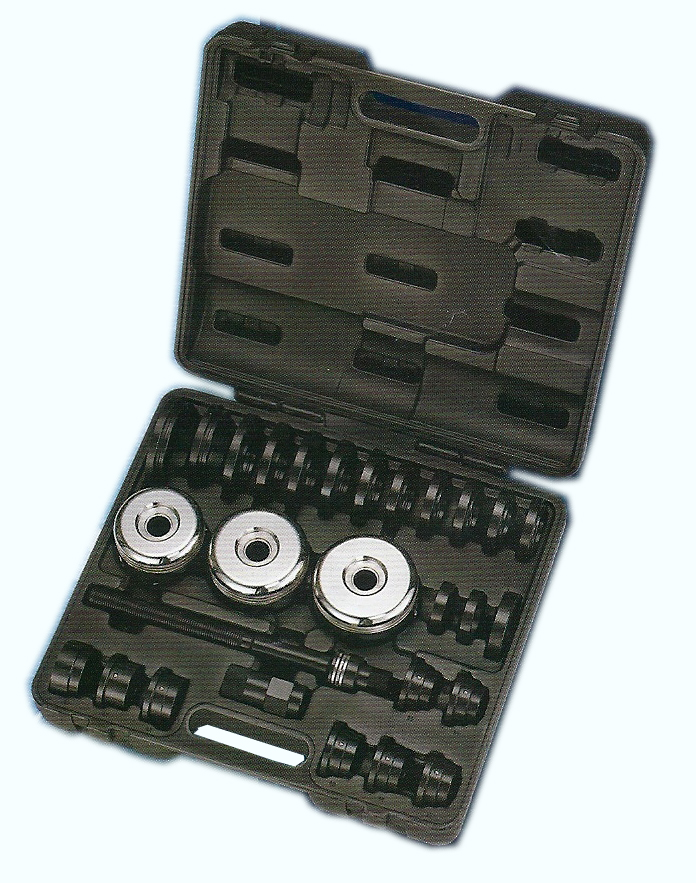

Wheel Bearing Extractor

Contents:
• For installing and removing wheel bearings as well as for installing wheel hubs.
• Change of built-in wheel bearings.
• Removing the strut unit as well as camber adjustment are not necessary.
-    time-saving (approx. 30 min).
-    money-saving repair for the customer
• Vehicles with Anti-Lock Braking System (ABS);
-    Due to the recess at the housing dismounting
the ABS-sensor is not necessary.
-    No risk of damaging the ABS-sensor
-    Money and time-saving
-    •> Centring and due to calotte (spherical recess) at the housing.

Specification:

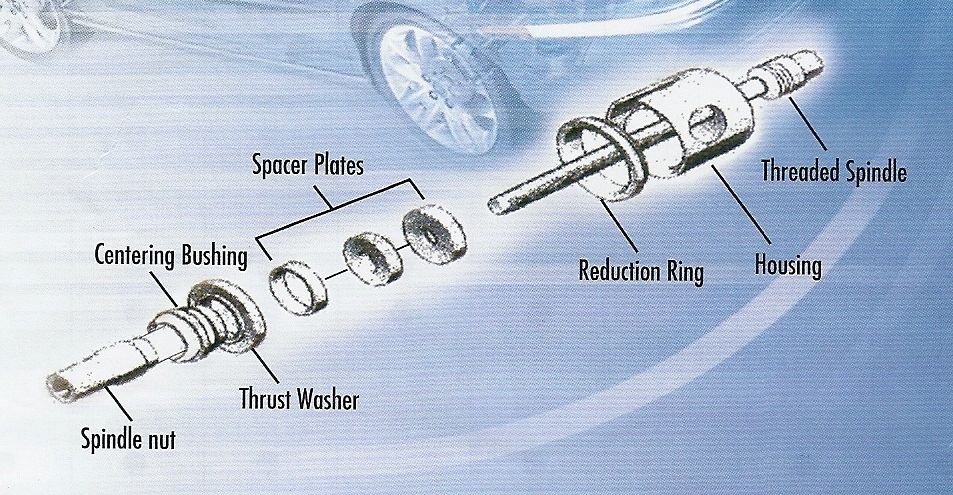

*O-ring-ciamping (DBGM-German registered utility model) developed retains the thrust washer on the centring bushing when installing and removing the wheel hub.
*Higher axial forces in spite of lower application (due to high-capaciry threaded spindle with special trapezoidal fine thread in conjunction with the axial cylinder roller bearing).
*Optimal centring when inserting the wheel hub into the new wheel bearing.
