Anderson Power 15A/ 30A/ 45A Master Tool Kit





Item No.: CH160837

Anderson Power 15A/ 30A/ 45A Master Tool Kit

Features:

* Refillable Service Kit is convenient way to keep small parts and ready to use at any time.

* Soon and quick rebuilt a genderless plug for portable charger

* Could be used for adapt MC4 solar panel connectors to Anderson power in solar segment.

Content:

* 1set Jaw for Anderson Power 15A/30A Powerpole Connector

  -AWG 20-16/16-12
-DIN 0.5-1.5/1.5-4.0 mm
2

* 1set Jaw for Anderson Power 45A Powerpole Connector

-AWG 16-12/14-10

-DIN 1.5-4.0/2.5-6.0 mm2

* 30pcs 15 Amp Contacts (AWG 20-16)

-Material: Copper Plate

-Surface finished: Silver Plated

* 30pcs 30 Amp Contacts (AWG 16-12)

-Material: Copper Plate

-Surface finished: Silver Plated

* 20pcs 45 Amp Contacts (AWG 14-10)

-Material: Copper Plate

-Surface finished: Tin Plated

* 6pcs 1 Pole 15/45 Amp Housing-Red

  -Material: PC     -Spring Material: Stainless Steel

  -Maximum Electrical Rating: 600 Volts Max.

* 6pcs 1 Pole 15/45 Amp Housing-Black

  -Material: PC     -Spring Material: Stainless Steel

  -Maximum Electrical Rating: 600 Volts Max.

* 3pcs Release Tool

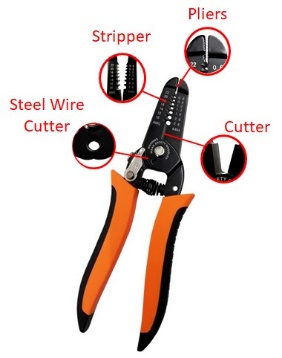

* 1pc 7" 4-Way Grinding Wire Stripper(With Lock)

* 1pc 9" Plus Quick Change Ratchet Crimper

-Body: Carbon Steel

- Handle: PP+TPR(RoHS Approved)

Anderson Power 15A/ 30A/ 45A Master Tool Kit Anderson Power 15A/ 30A/ 45A Master Tool Kit Anderson Power 15A/ 30A/ 45A Master Tool Kit
