Middle Pressure Spray Gun

Item No.: CH181103-MPPS

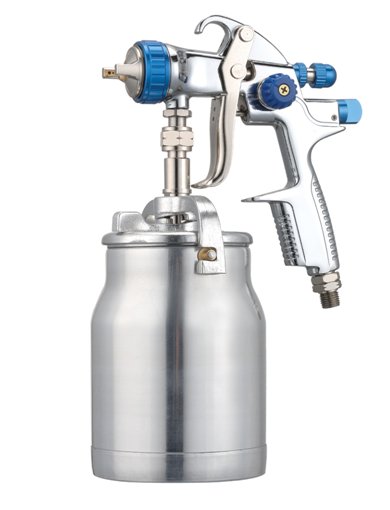

Middle Pressure Spray Gun

Feature:

* Stainless steel paint nozzle, needle and other parts that fluid pass through.

* Suitable for the application of both waterborne and solvent materials.
* High speed application and fine atomization.

* Optimum finish results in all field of application.
* Available nozzle size: 1.0mm, 1.3mm, 1.4mm, 1.6mm, 1.8mm, 2.0mm and 2.5mm

Specification:
* Fluid tip size: 1.6mm

* Air pressure: 2.5kg/cm2

* Air inlet: 1/4”

* Fluid inlet:3/8”

* Air consumption: 280 L/min
* Weight: 820g
* Capacity Of cup: 1.0L


¡@

¡@
