Item No.:CH0812212

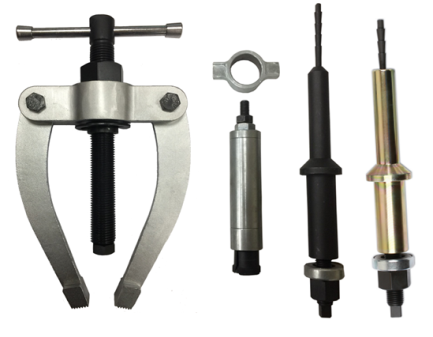

Volvo (FM12) Truck Injector Sleeve Remover/Installer Set

Description:

* Removal:

-Put the 2-1 puller into cylinder to reach sleeve. Screw top nut to make puller retain sleeve, then install 2-2 puller ring, and assemble No.1 puller, screw top nut and take out the old sleeve.

* Installation:

-Put new sleeve into 3-1 Expander, then install 3-2 THREAD TAP, finally put the whole tool into cylinder, screw the top nut , then the new sleeve will be installed perfectly.

* Application: VOLVO (FM12)
