Item No.: CH121118

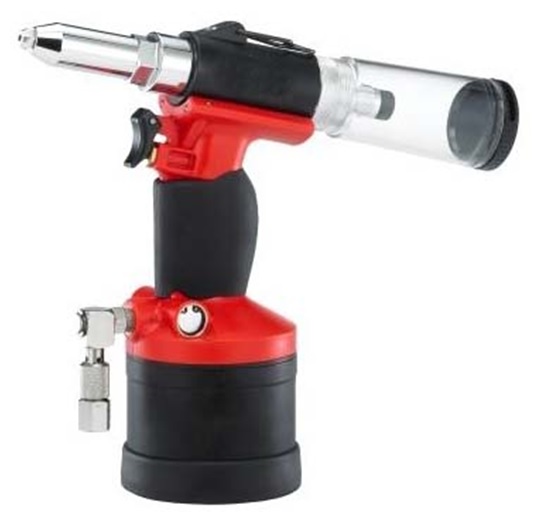

Air Hydraulic Riveter (Vacuum)
Feature :
* With Suction control switch
* Long Stroke (15mm)
* Set 3/16”(4.8mm) and 3/32”(2.4mm) structural Monobolt
rivets, “T” rivets and standard rivets-in all materials.
* Soft set shockless tools
* Mandrel collection bottle design allows for easy
disposal of spent mandrels
* Heavy duty construction for rugged applications
Specification:
* Riveting capacity: 3/16”, 5/32”, 1/8”,3/32 “ (4.8,
4.0, 3.2, 2.4 mm)
* Stroke: 15 mm (0.59“)
* Working Air Pressure: 85 ~ 95 PSI (6 ~ 6.7 kg/cm2)
* Traction Power: 2000 lbs (908kg)
* Weight: 1.45kg
* Height: 250 mm
* Length of Placing Head: 290 mm
* Base Diameter: 96.5 mm
* Other available type:
-CH121118-I, which suction can’t be tuned. To avoid
artificial nails improper operation.
-CH121118-N, no vacuum type |
