Item No.: CH121120-L

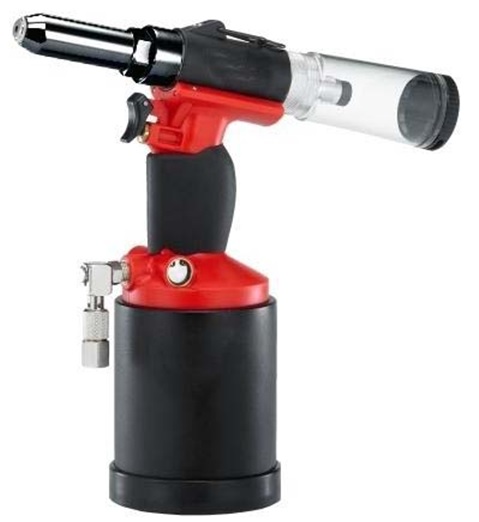

Air Hydraulic Riveter (Vacuum)

Feature:

* With Suction control switch

* Long Stroke (22.5/26mm)

* Set 1/4”(6.4mm) and 3/16”(4.8mm) structural Monobolt rivets, “T” rivets and standard rivets-in all materials.

* Soft set shockless tools

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Heavy duty construction for rugged applications

Specification:

* Riveting capacity: 1/4”, 7/32”, 3/16 “ (6.4,5.6, 4.8 mm)
* Stroke: 26 mm (1.02 “)
* Working Air Pressure: 95 ~ 100 PSI (6.67 ~ 7.02 kg/cm2)
* Traction Power: 3100 lbs (1407kg)
* Weight: 1.88kg
* Height: 310 mm
* Length of Placing Head: 305 mm
* Base Diameter: 109 mm

* Other available type:

-CH121120-LI, which suction can’t be tuned. To avoid artificial nails improper operation.

 -CH121120-NL, no vacuum type
