Item No.: CH121120

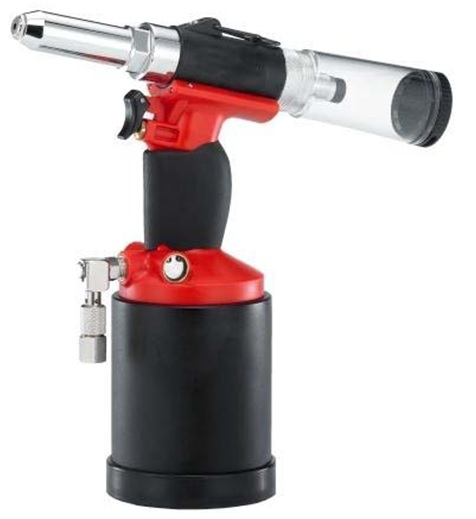

Air Hydraulic Riveter(vacuum)

Feature:

* With Suction control switch

* Long Stroke (22.5/26mm)

* Set 1/4”(6.4mm) and 3/16”(4.8mm) structural Monobolt rivets, “T” rivets and standard rivets-in all materials.

* Soft set shockless tools

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Heavy duty construction for rugged applications

Specification:
* Riveting capacity: 3/16”, 7/32”, 1/4”, 5/16 “ (4.8, 5.6, 6.4, 7.8 mm)
* Stroke: 22.5 mm (0.88 “)
* Working Air Pressure: 85 ~ 95 PSI (6 ~ 6.7 kg/cm2)
* Traction Power: 3800 lbs (1723kg)
* Weight: 1.8kg
* Height: 310 mm
* Length of Placing Head: 305 mm
* Base Diameter: 109 mm

* Other available type:

-CH121120-I, which suction can’t be tuned. To avoid artificial nails improper operation.

 -CH121120-N, no vacuum type
