Item No.: CH1211337-A

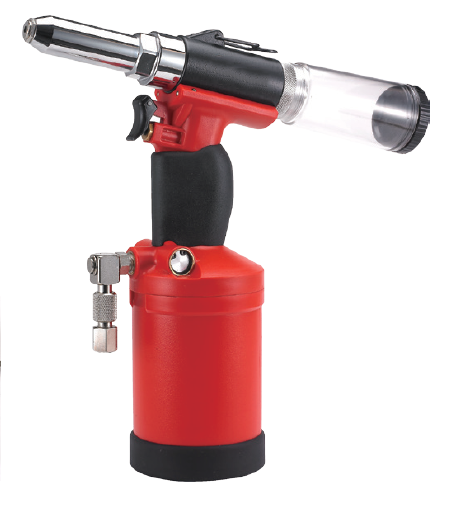

Air Hydraulic Riveter

Feature:

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Sets 3/16”(4.8mm) and 1/4”(6.4mm) structural Monobolt rivets, “T” rivets and standard rivets- in all materials

* Heavy duty construction for rugged applications

* Soft-set shockless tools

Specification:

* Riveting capacity: 3/16”~1/4”(4.8mm~6.4mm)

* Nosepiece: 3/16”(4.8mm), 7/32”(5.6mm), 1/4”(6.4mm)

* Traction power: 3700lbs (16458n)

* Stroke: 15mm (0.59”)

* Working air pressure: 85-95psi (6-6.7kg/cm²)

* Tool dimensions: high-300mm, length-290mm, depth: 91.6mm, weight: 1.83kg
