Item No.: CH1211337-HLR

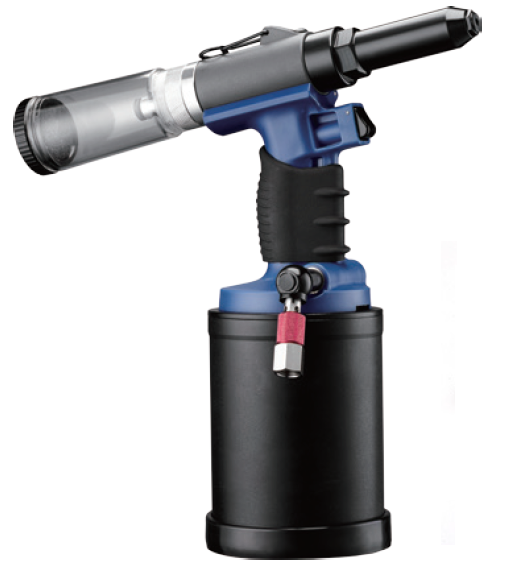

Air Hydraulic Riveter(Vacuum)

Feature:

* With Suction control switch

* Long Stroke (29.2mm)

* Set 1/4” (6.4mm) and 3/16”(4.8mm) Monobolt rivets, “T” rivets and standard rivets-in all materials.

* Soft set shockless tools

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Heavy duty construction for rugged applications

* Nail back twice as fast, the low pressure operating

Specification:
* Riveting capacity: 1/4”, 7/32”, 3/16” (6.4, 5.6, 4.8 mm)
* Stroke: 29.2 mm (1.14”)
* Working Air Pressure: 70 ~ 95 PSI (4.9 ~ 6.7 kg/cm²)
* Traction Power: 3550 lbs (1611kg)
* Weight: 1.91kg
* Height: 325 mm
* Length of Placing Head: 305 mm
* Base Diameter: 113.5 mm
