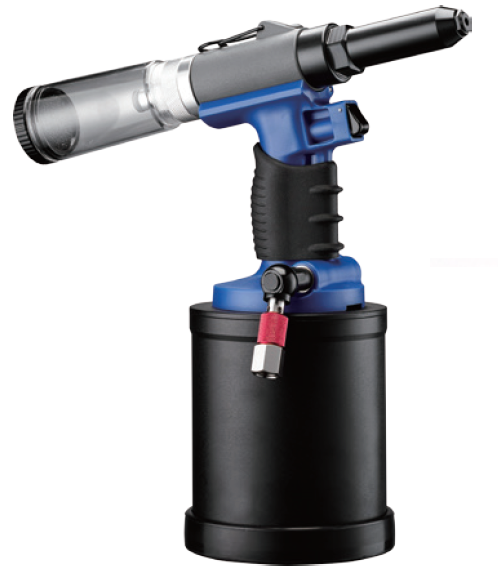

Air Hydraulic Riveter(Vacuum)

¡@

¡@

Item No.: CH1211339-R

Air Hydraulic Riveter(Vacuum)



Feature:

* With Suction control switch

* Long Stroke (26/30mm)

* Set 5/16¡¨ (7.8mm) and 3/16¡¨(4.8mm) Monobolt rivets, ¡§T¡¨ rivets and standard rivets-in all materials.

* Soft set shockless tools

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Heavy duty construction for rugged applications

* Nail back twice as fast, the low pressure operating



Specification:

¡@

Riveting capacity:

5/16¡¨, 1/4¡¨, 7/32¡¨, 3/16¡¨

(7.8, 6.4, 5.6, 4.8 mm)

5/16¡¨, 1/4¡¨, 7/32¡¨, 3/16¡¨

(7.8, 6.4, 5.6, 4.8 mm)

Stroke:

26 mm (1.023¡¨)

30 mm (1.18¡¨)

Working

Air Pressure:

70 ~ 95 PSI

(4.9 ~ 6.7 kg/cm2)

70 ~ 95 PSI

(4.9 ~ 6.7 kg/cm2)

Traction Power:

5000 lbs (2270kg)

4500 lbs (2043kg)

Weight:

2.18kgs

2.23kgs

Height:

325mm

329.7mm

Length:

305mm

305mm

Diameter

126.8mm

126.8mm



¡@

¡@

¡@

¡@

¡@
