Item No.: CH1211356

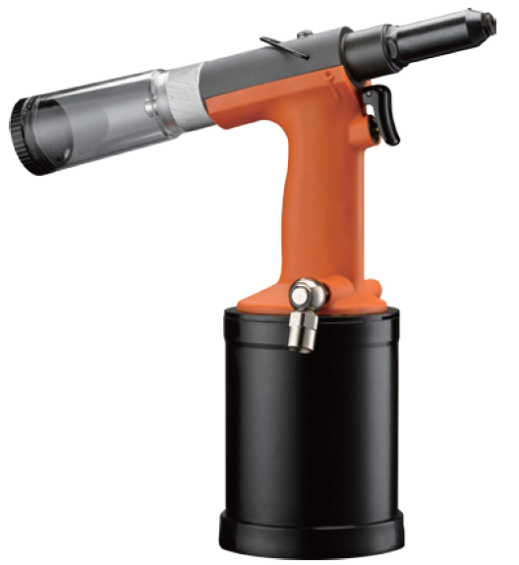

Air Hydraulic Riveter(Vacuum)

Feature:

* Patented design switch 2 stages function:

-first stage: suck the rivets

-second stage: pull in

* Long Stroke (28mm)

* Set 1/4” (6.4mm) and 3/16”(4.8mm) Monobolt rivets, “T” rivets and standard rivets-in all materials.

* Soft set shockless tools

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Heavy duty construction for rugged applications

* Nail back twice as fast, the low pressure operating

Specification:
* Riveting capacity: 1/4”, 7/32”, 3/16” ,5/32”,1/8” (6.4, 5.6, 4.8,4.0, 3.2 mm)
* Stroke: 28 mm (1.10”)
* Working Air Pressure: 85 ~ 95 PSI (6 ~ 6.7 kg/cm²)
* Traction Power: 3800 lbs (1725kg)
* Weight: 1.78kg
* Height: 325 mm
* Length of Placing Head: 320 mm
* Base Diameter: 110 mm
