Item No.: CH1211359-MU

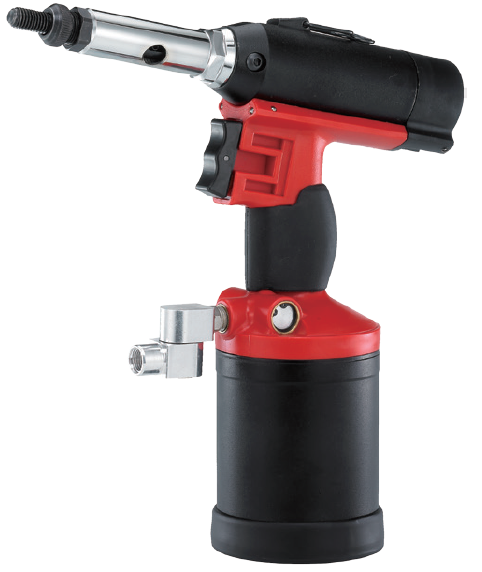

Air Hydraulic Threaded Insert Tool

Feature:

* Over 6000lbs traction power

* Light weight spin-pull rivet nut setter

* Quick change connector for tie rod

* Set up to 1/2”(M12) stainless steel rivet nuts

* Wear-resistant surface extend tool life

* Rubber grip with soft touch for easy operation

* Stroke 2-7mm

Specification:

* Traction power: 6000lbs (2724kg)

* Stroke: 7mm

* Riveting capacity: M4, M5, M6, M8, M10, M12, #8, #10-24, #10-32, 1/4”-20, 5/16”-18, 3/8”-16, 1/2”-13, all materials

* Working air pressure: 85-95psi (6~6.7kg/cm²)

* Tool dimension: hight-305mm, length:278.1mm, depth: 92.5mm, weight:2.3kgs
