Item No.: CH1211360-M & CH1211360-U

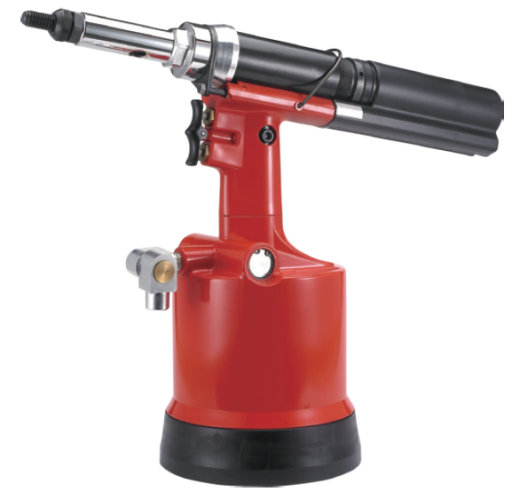

Air Hydraulic Threaded Insert Tool

Feature:

* Over 6000lbs traction power

* Light weight spin-pull rivet nut setter

* Quick change connector for tie rod

* Set up to 1/2”(M12) stainless steel rivet nuts

* Wear-resistant surface extend tool life

* Rubber grip with soft touch for easy operation

* Long stroke: 16.5mm

Specification:

* Traction power: 6000lbs (2724kg)

* Stroke: 16.5mm

* Riveting capacity:

 -CH1211360-M: M4, M5, M6, M8, M10, M12

-CH1211360-U: #8, #10-24, #10-32, 1/4”-20, 5/16”-18, 3/8”-16, 1/2”-13

* Working air pressure: 95-100psi (6.7~7kg/cm²)

* Tool dimension: hight-335mm, length:406mm, depth: 154mm, weight:3.77kgs
