Item No.: CH1211361-M & CH1211361-U

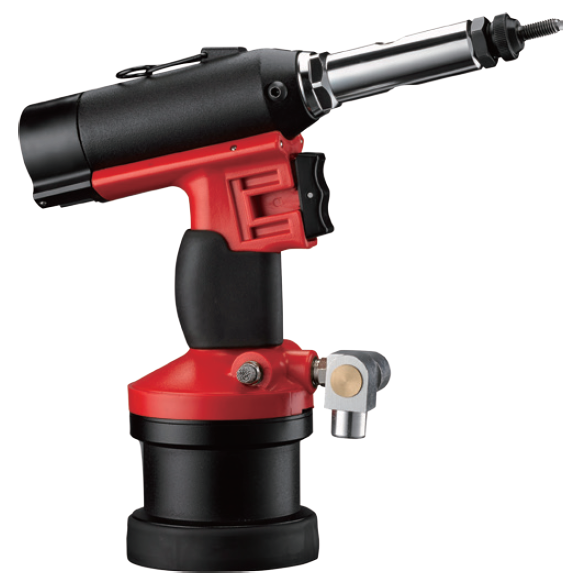

Air Hydraulic Threaded Insert Tool

Feature:

* Over 3200lbs traction power

* Light weight spin-pull rivet nut setter

* Quick change connector for tie rod

* Set up to 5/16”(M8) stainless steel rivet nuts

* Wear-resistant surface extend tool life

* Rubber grip with soft touch for easy operation

* Stroke: 2~7mm

Specification:

* Traction power: 3200lbs (1452kg)

* Stroke: 7mm

* Riveting capacity:

-CH1211361-M: M3, M4, M5, M6, M8

-CH1211361-U: #6, #8, #10-24, #10-32, 1/4”-20, 5/16”-18

* Working air pressure: 85-95psi (6~6.7kg/cm²)

* Tool dimension: hight-226.5mm, length:278.1mm, depth: 92.5mm, weight:2.1kgs
