Item No.:CH181101-G

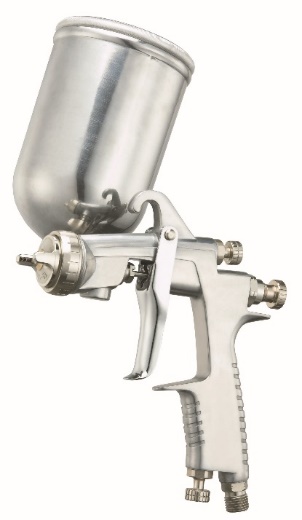

Spray gun

Feature:

* Improved maneuverability with light weight and well-balanced gun body.

* Stable atomizing performance with less paint adhesion to the air cap.

* Steady spray pattern and uniform coating.

Specification:
* Fluid tip size: 1.3mm
* Air pressure: 2.0-2.5bar (28-36psi)
* Air inlet: 1/4 NPS
* Fluid inlet: 1/4 NPS
* Fluid output: 155/170ml/min
* Air consumption: 210-250L/min (7.4-8.8CFM)
* Spray pattern: 205-220mm
* Weight: 463g
* Capacity Of cup: 0.4L

* Optional nozzle size: 1.0, 1.5, 1.8mm
